OPTIMOIL 103M TC
Versatile emptying vacuum
- 90 liters
- 3800 mmH2O
- 480 m3/h
The OPTIMOIL™ is a versatile industrial vacuum drainer designed for emptying machine tool bins and daily maintenance operations. The 103M TC version with a capacity of 90 liters has TURBO® technology that grants it a powerful suction with a simple 230V single-phase 16A standard power supply.

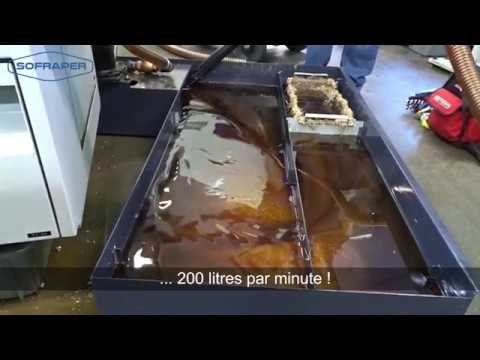

Discover the OPTIMOIL™ in video
This patented self-adapting multi-motor technology is unique on the market. It allows the vacuum cleaner to detect the suction context and to automatically change the motor configuration to favor a strong vacuum (motors in series) or a high air flow (motors in parallel). Thus it sucks up both liquids and solids!
Liquid / solid separation
Provided by a 15 l stainless steel basket for 2000 µm pre-filtration coupled with a removable 200 µm bag.
Easy and safe to use
The emptying of the device is done by gravity. The sloping bottom ensures a total emptying. Moreover, when the “high level” of the tank is reached, a float closes the suction hole to avoid any risk of overflow.
Cleanliness & ergonomics
The accessory holder on a drip tray with polyurethane wheels ensures that the workshop floor is always clean.
Simultaneous suction and discharge
Possibility of deferred or simultaneous suction and discharge.
The double bypass valve at the tank outlet allows the fluid to be discharged directly.
- Semi-rigid PE-metal cane (90 cm)
- Straight PE cane (90 cm)
- Flat spout (width 120 mm)
- Flat bevelled nozzle
- Reinforced suction hose with knurled screwed sleeves (3 m)
- Floor nozzle (optional)
- Sludge tank (30 liters): separate collection of sludge or chips. Flexible hose of 3 m included.
- Fine filtration: fine filtration at the discharge on 5 or 20 µm cartridge.
- HP effect: for an easy cleaning of the tanks.
- Level indicator: visual control of the quantity of fluid in the tank.
- Stainless steel tank: ideal for corrosive and non-foaming detergents.
- Removable pistol grip: for easier and faster delivery
- Pre-filtration pocket: for a pre-filtration of 2000 to 200 µm
- Electric shut-off float: stops the motor for maximum safety in addition to the shut-off float.
- 1000l IBC/IBC kit: connect your OPTIMOIL™ to a large capacity container.
- Max airflow (m³/h)
- Max depression (mmH2O)
- Lubricated chips, Emulsions, Neat oils
- TURBO™ Technology
- Power (W)
- Power supply
- 230V single phase
- Epoxy paint
- Width (mm)
- Depth (mm)
- Height (mm)
- Capacity (litres)
- Capacity with simultaneous delivery
- Weight (kg)
- Suction pipe diameter (mm)
