TANKVAC HV 1203M TC

Very high capacity emptying vacuum

  • 1150 litres
  • 3800 mmH2O
  • 480 m3/h

The TANKVAC HV is a self-contained, large capacity vacuum cleaner with fine filtration at the discharge. It is ideal for emptying and transferring large volumes of lubricants and non-foaming detergents. The 1203M TC version with a capacity of 1000 liters is equipped with SIEBEC Sofraper's exclusive TURBO™ and HV™ technologies. A combo never seen before on the market!

TURBO™ technology

This patented self-adapting multi-motor technology is unique on the market. It allows the vacuum cleaner to detect the suction context and to automatically change the motor configuration to favor a strong vacuum (motors in series) or a high air flow (motors in parallel). Thus it sucks up both liquids and solids!

HV™ technology

This exclusive patented SIEBEC SOFRAPER allows for ultra-fast transfer of liquids while ensuring complete cleaning of bins, without liquid or solid residue!

Principle

  1. Standard suction: fills the suction tank to prime the transfer pump
  2. Transfer up to 250 l/min: once the pump is submerged, the high flow transfer mode is automatically activated.
  3. Vacuuming at the bottom of the tank : allows to vacuum liquids and solids remaining at the bottom of the tank to be cleaned

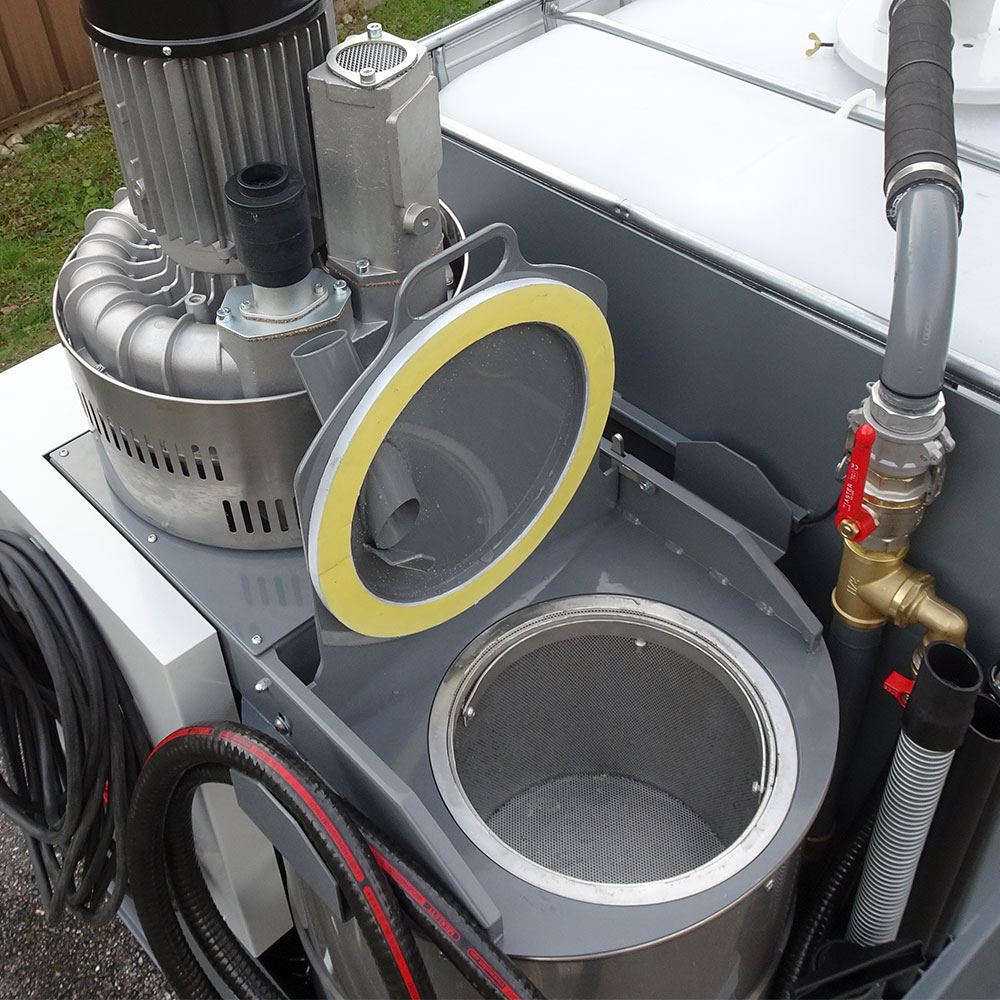

Liquid / solid separation

Provided by a 15 l stainless steel basket for 2000 µm pre-filtration coupled with a removable 200 µm bag.

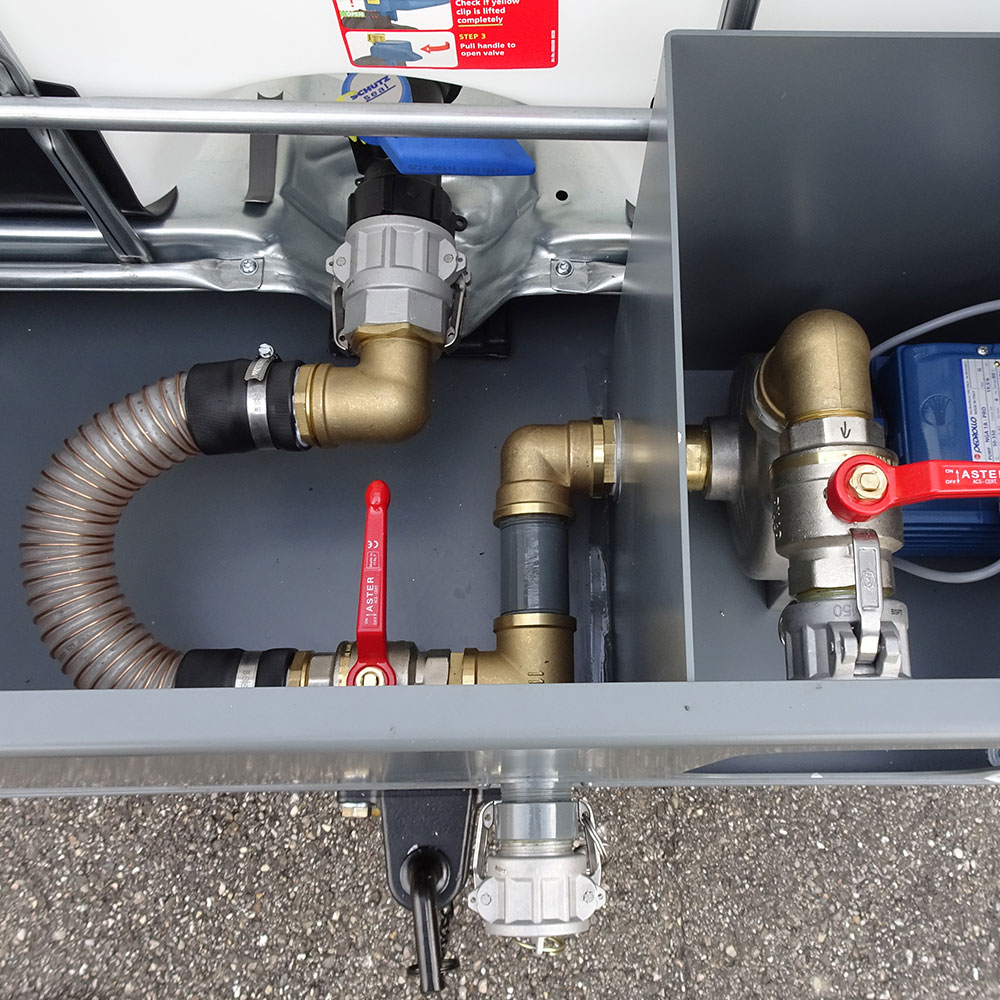

Simplified and safe emptying

The unit is drained by gravity or by an external pump, with a camlock connection and selection valve.

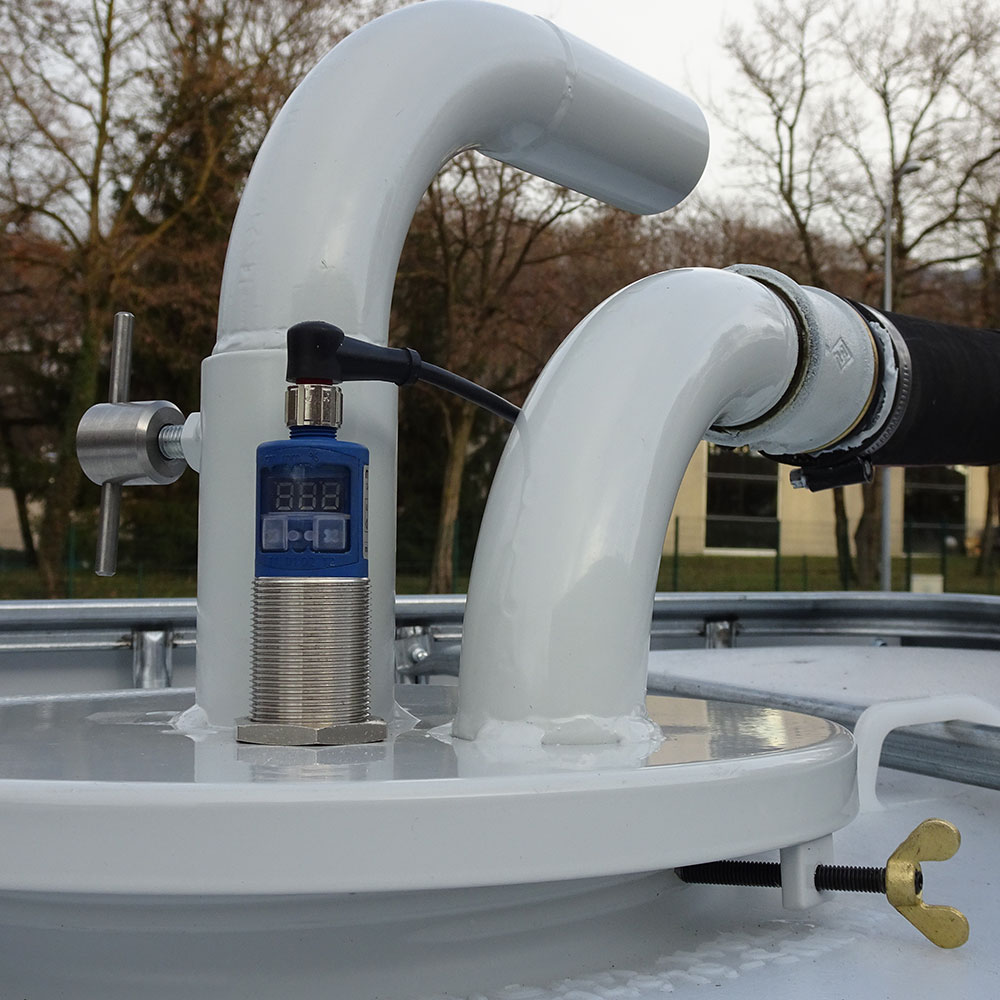

An electric high level indicator allows the automatic stop of the suction when the storage tank is full. Moreover, the design of the TANKVAC HV integrates a total retention to prevent any risk of accidental leakage.

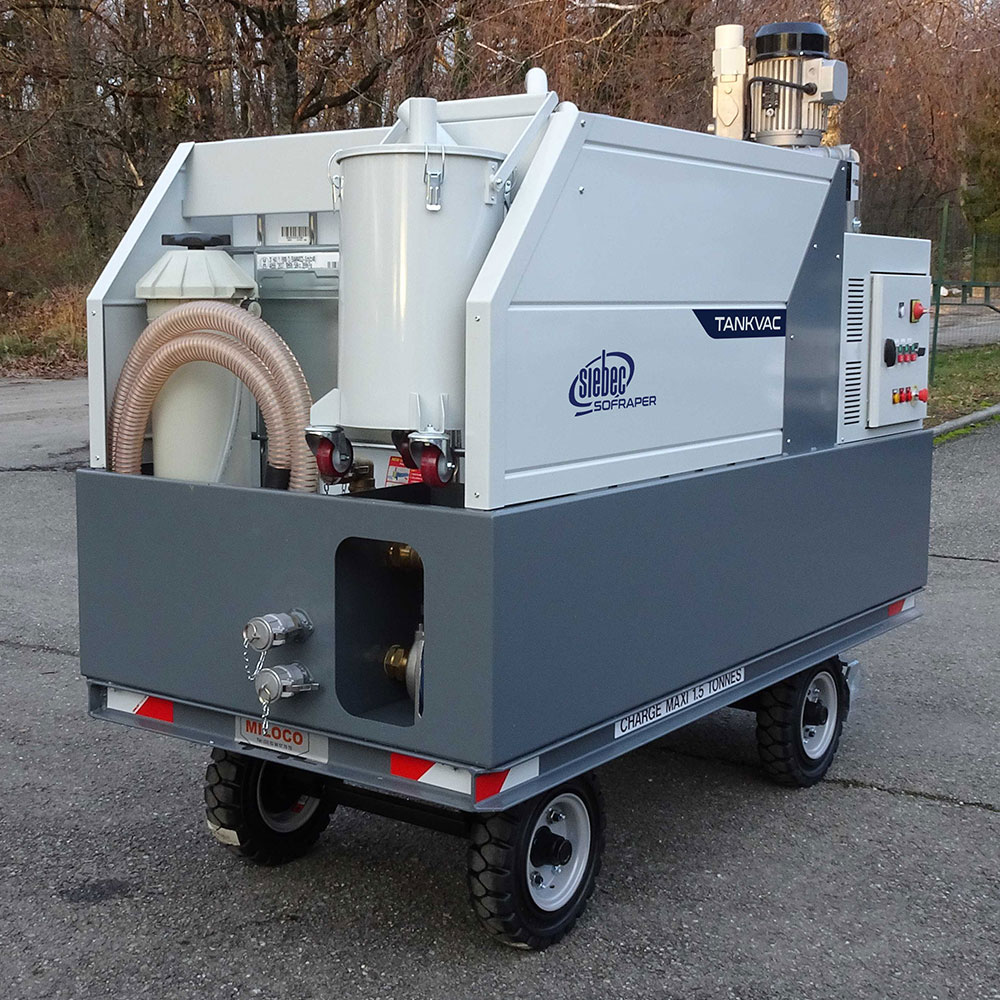

Handling & mobility

The TANKVAC HV is available in 2 versions :

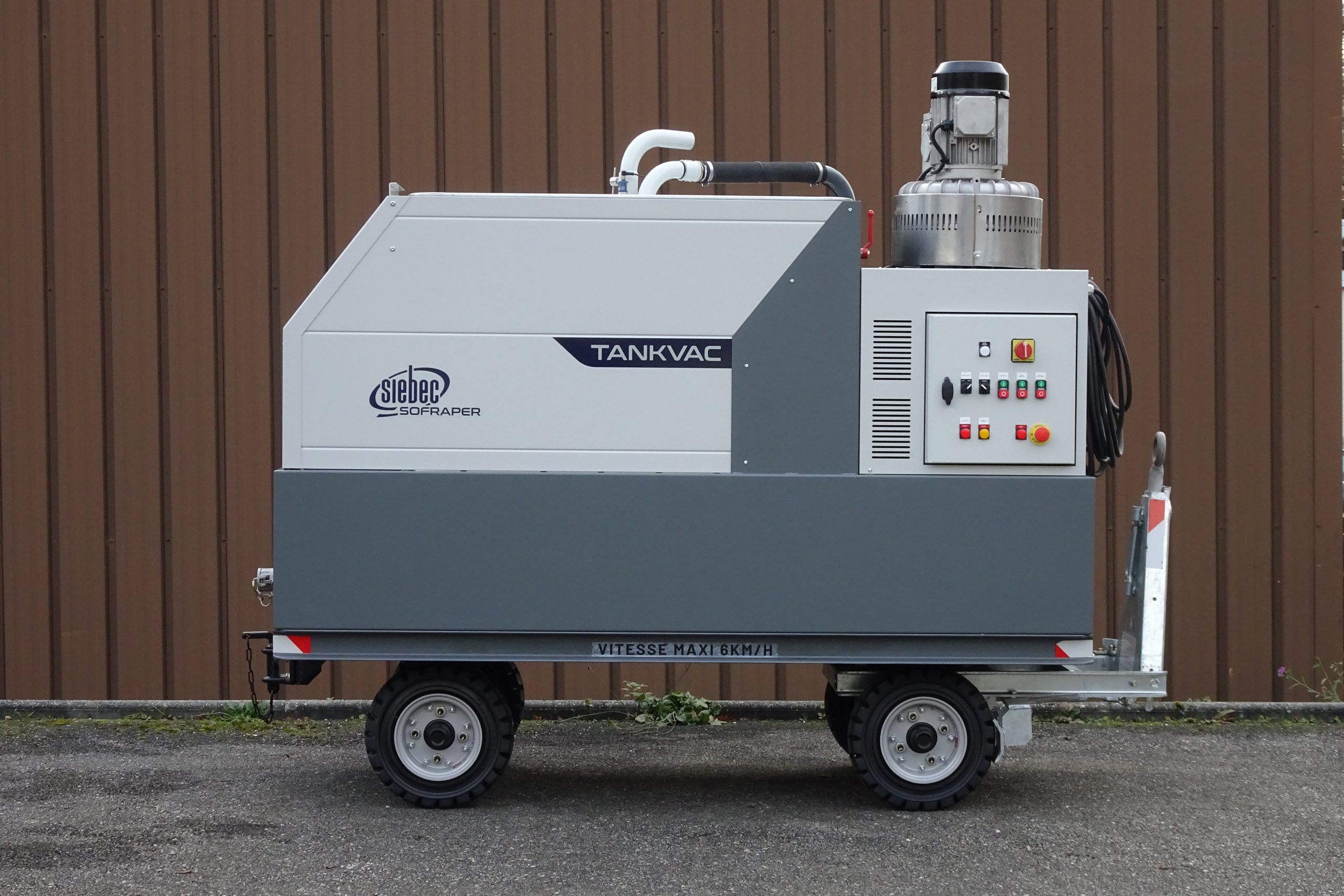

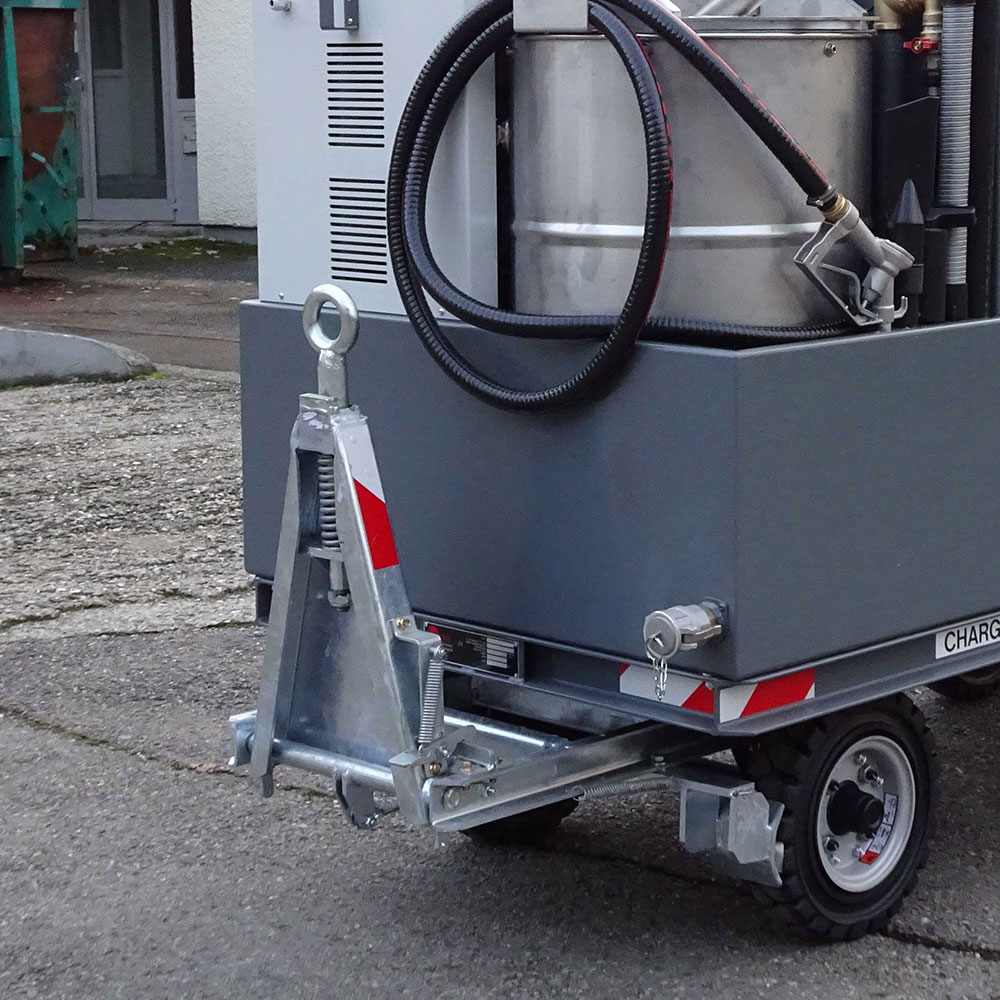

  • Towable version with large diameter solid rubber wheels. Double steering axle on the 4000 liter version for a minimum turning radius. The parking brake is automatically activated when the drawbar is raised.

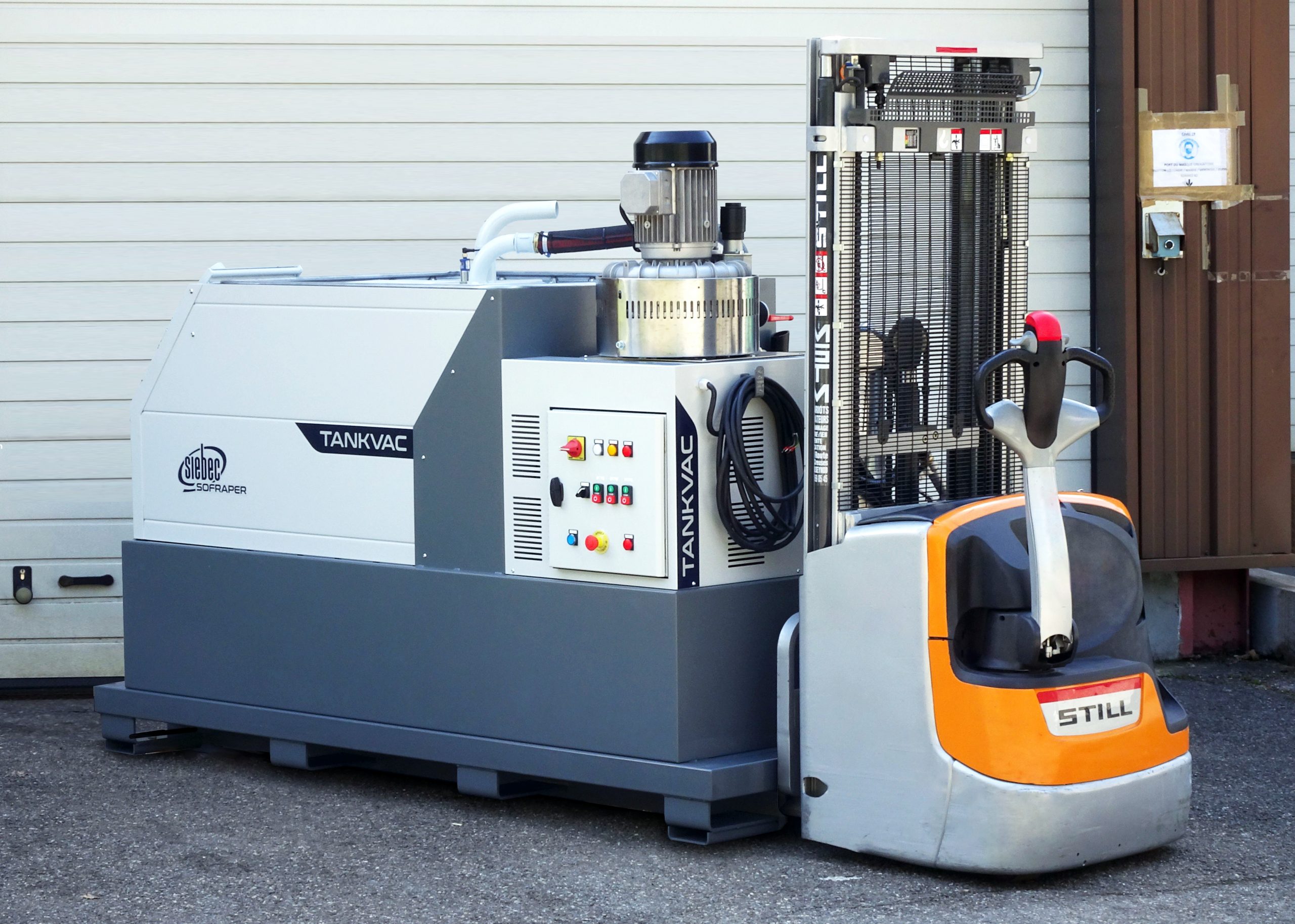

  • SKID version can be picked up by forklift or electric pallet truck with long forks.

Intermediate suction tank

304L stainless steel tank with submerged pump, high and low level floats for HV auto mode and drain valve.

On board fine filtration & sludge tank

The fine filtration (20 or 5 µm) integrated in the discharge allows the direct reuse of the fluid in your process. A considerable time and cost saving. The FILTECH™ 20″ cartridge with very large filtering surface (5 m²) is washable and reusable.The sludge tank (optional) collects all solid particles and thus maintains the suction power of the unit throughout its use.

Ergonomics

Accessory support for dripping, pistol grip with selection valve for discharge mode (with or without filtration).

Accessories kit

  • Semi-rigid PE-metal cane (90 cm)
  • Straight PE cane (90 cm)
  • Flat spout (width 120 mm)
  • Flat bevelled nozzle
  • Reinforced suction hose with knurled screwed sleeves (3 or 6 m)
  • Floor nozzle (optional)

Options

  • Sludge tank (30 liters) : separate collection of sludge or chips. Flexible hose of 3 m included.
  • Fine filtration: fine filtration at the discharge on 5 or 20 µm cartridge.
  • HP effect lance: for an easy cleaning of the tanks.
  • Pre-filtration bag : for a prefiltration from 2000 to 200 µm.
  • Additional tank : Double the capacity of your TANKVAC HV with a second trailer with a 1000 liters capacity.

Specifications

Performances

Max airflow (m³/h)
480
Max depression (mmH2O)
3800
Applications
Lubricated chips, Emulsions, Neat oils, Pit emptying, Detergent products
TURBO™ Technology
Yes
HV™ Technology
Yes

Motorisation

Power (W)
3300
Power supply
230V single phase

Design

Width (mm)
1120
Depth (mm)
2400
Height (mm)
1850
Capacity (litres)
1150
Suction pipe diameter (mm)
50
