1′

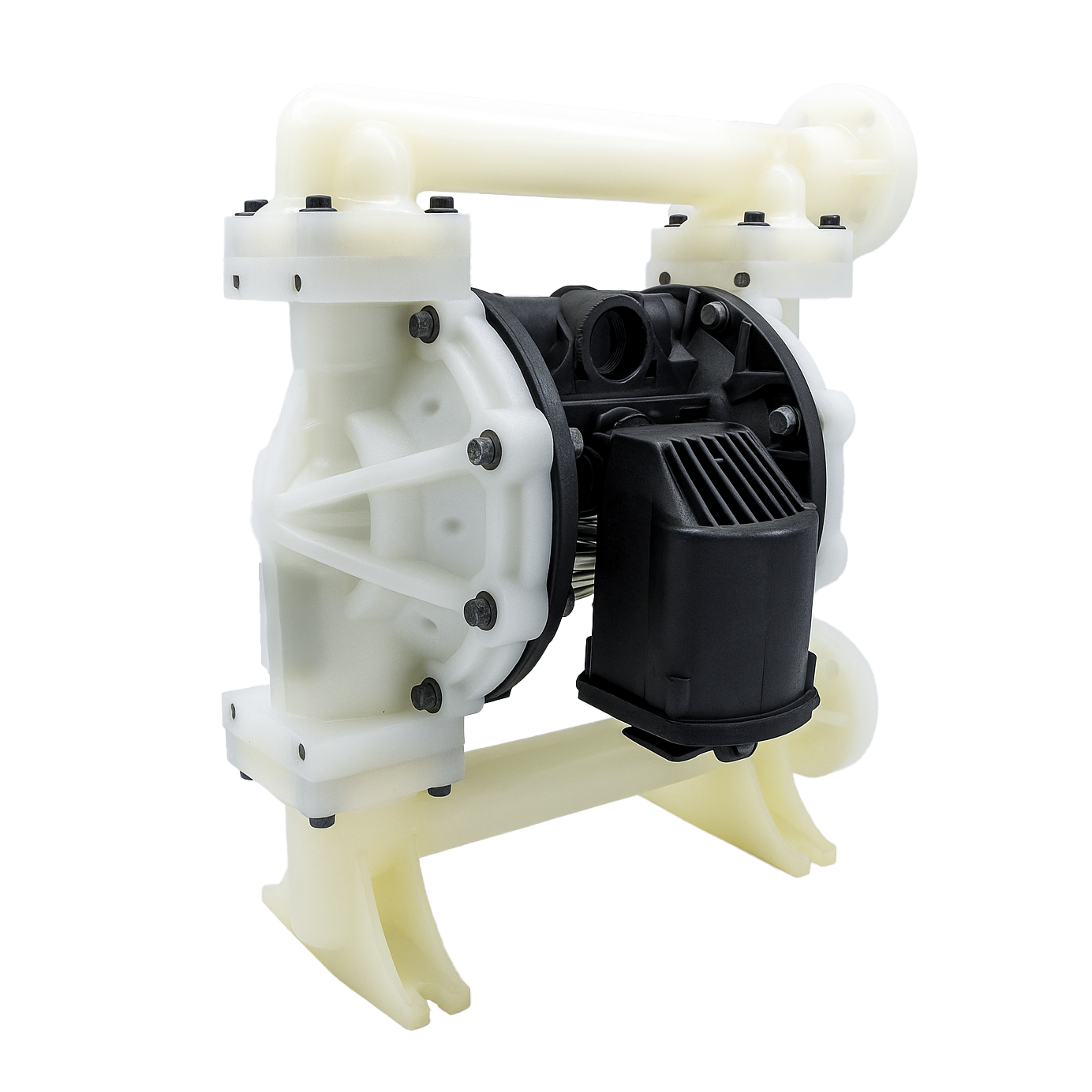

Pneumatic pump
- 189 l/min
- 8.6 bars
Thanks to its double diaphragm system, this pump guarantees a smooth and consistent transfer of liquids. Equipped with a low-pulsation air valve, it ensures quick reversal without the risk of stalling. Its monobloc design of the central section limits leak risks and significantly reduces maintenance needs, for enhanced long-term reliability.
Features & Benefits
Optimized lifespan
High-performance diaphragms offering up to five times longer life, reducing maintenance operations and unplanned downtime.
Smooth and reliable reversal
Modular air valve ensuring stall-free, low-pulsation operation for quick and seamless transition.
Enhanced sealing
Monobloc central section eliminating air leaks and guaranteeing improved energy efficiency.
Constant pressure retention
Bolted joint design (4 points) ensuring durable and flawless sealing, even under high stress.
Integration flexibility
Multiple port options to facilitate installation in various industrial configurations.
Specifications
Hydraulic and pneumatic performance
- Flow rate (l/min)
- 189
- Max pressure (bar)
- 8.6
- Max. suction height (m)
- 4.9 (unprimed), 8.8 (primed)
Design
- Materials
- Polypropylene, PVDF
- Power supply
- Pneumatic
- End
- Flange
- Applications
- Emulsions, Neat oils, Pure water
Connections
- Air inlet
- 1/2'' NPT
- Liquid inlet
- 1'' FLANGE
