J50

Medium flow vertical filter

  • 25 m³/h
  • 2200 W

This medium flow vertical filter offers a maximum flow rate of 25 m³/h. It can be mounted underwater or above ground to save space in the tank.

Excellent chemical resistance

Available in polypropylene or PVDF, this filter is resistant to both acids and bases.

Durable and resistant design

SIEBEC’s know-how is expressed through a welded tank, without seals to eliminate any risk of leakage.

In-bath or outboard setup

Vertical filters can be mounted outside or inside the bath to save space.

Ergonomic design

The cartridge filter cover is locked with a single screw-on handle. This makes it very quick and easy to replace the filter cartridge.

Specifications

Performances

Flow rate (m³/h)
25
Media height
20"
Filtration media

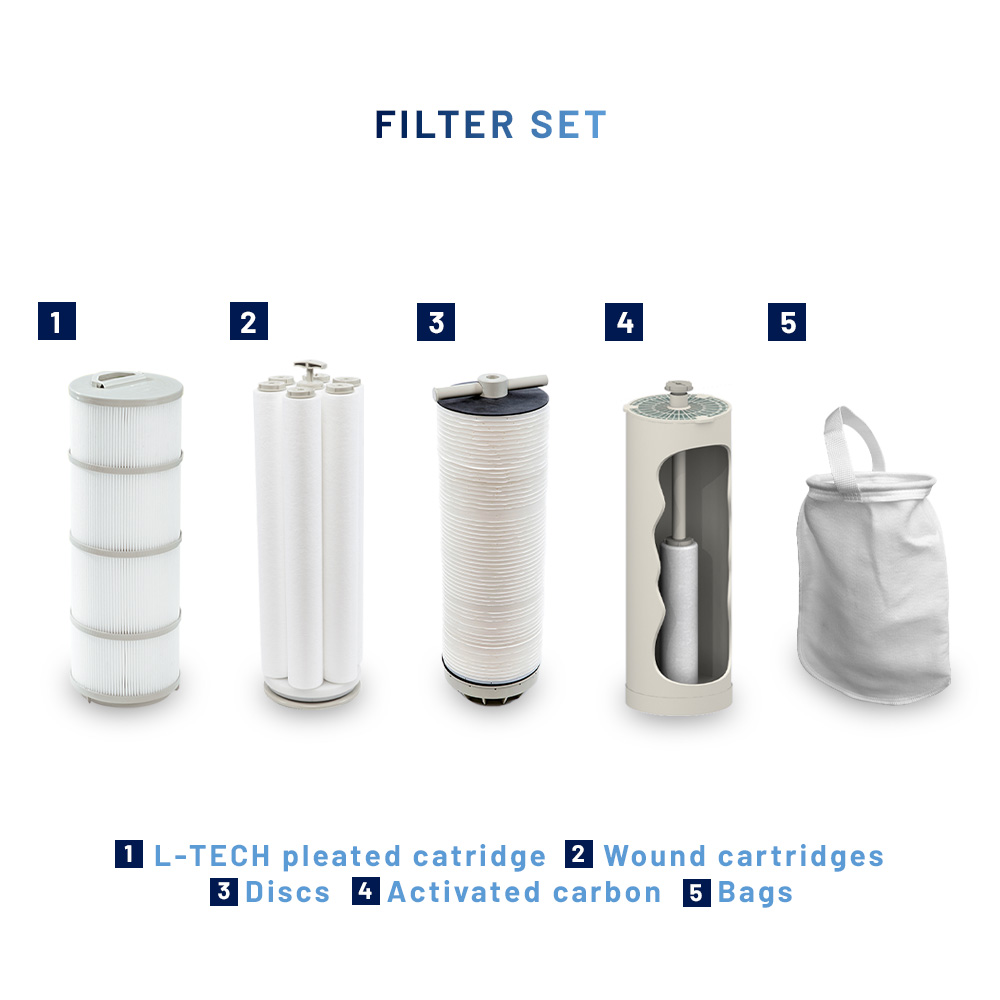

L-TECH™ (pleated cartridge), QUALITHERM™ (extruded cartridge), Filter discs, CARBOTECH™ (activated carbon)
Filtration threshold (µm)
0,2 > 100

Desgin

End
Nut, Nozzle, Flange, Threaded
Materials
Polypropylene, PVDF
Max temperature (°C)
110

Motor

Related pump models
ST50, T70, T100, T140, T200, T242

Dimensions

Width (mm)
650
Depth (mm)
345
Height (mm)
880

Documents

Data sheet Download
Brochure Download
