S50E

High flow filter with coating tank

  • 28 m³/h
  • 2200 W

High flow filter up to 28 m³/h + coating tank made of filled polypropylene with very high chemical and mechanical resistance, the S50E offers an excellent flow rate / volume ratio in addition to a 30 liter coating tank.

Excellent chemical resistance

Available in polypropylene or PVDF, this filter is resistant to both acids and bases.

Long-lasting design

Our extremely strong plastic welding method eliminates the need for gaskets, eliminating the risk of leakage.

Pump Protection

The filter holder protects the pump from splashes of potentially corrosive fluids, thus extending its life.

High filtration compatibility.

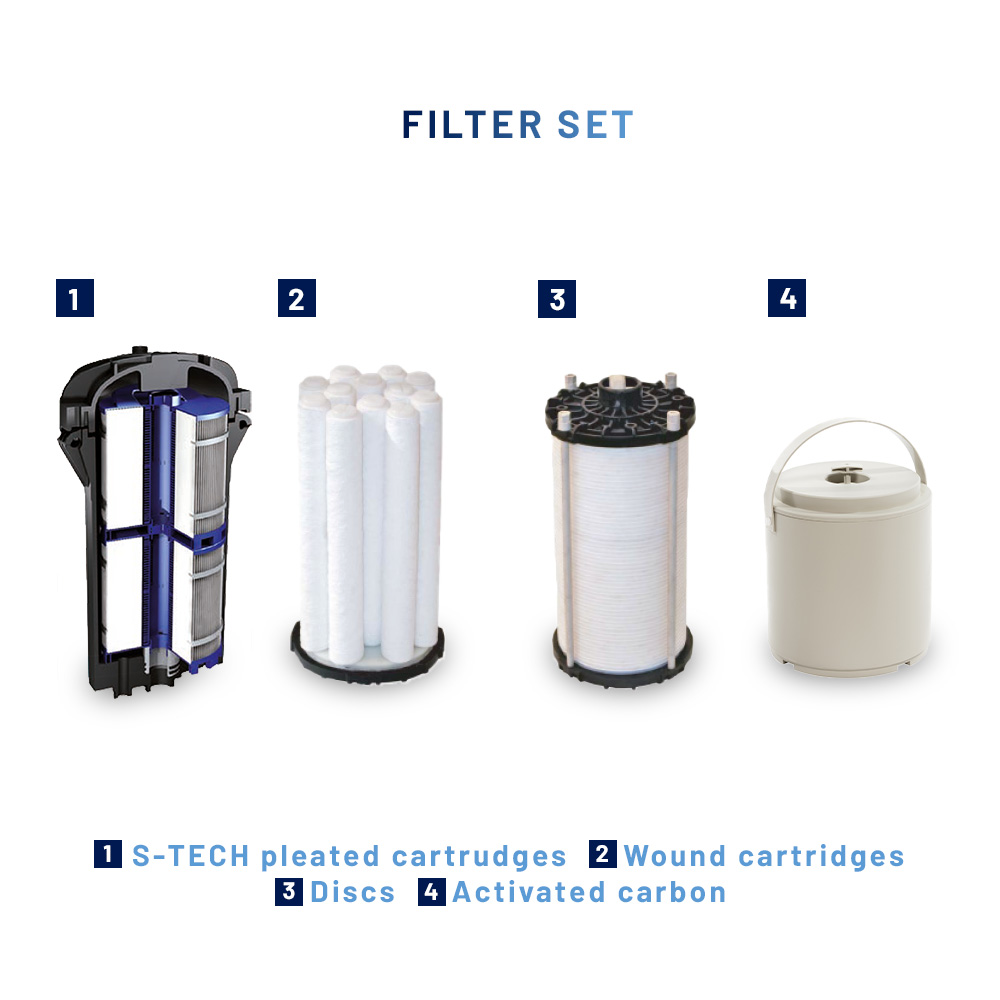

Filtration on pleated cartridge (L-TECH™ type), heat sealed cartridges (Qualitherm™ type), filter trays or activated carbon.

Specifications

Performances

Flow rate (m³/h)
28
Media height
20"
Double filtration tank
Not available
Flow rate (m³/h)
28
Filtration media
L-TECH™ (pleated cartridge), QUALITHERM™ (extruded cartridge), Filter discs, CARBOTECH™ (activated carbon)
Filtration threshold (µm)
0,2 > 100

Desgin

End
Nut, Nozzle, Flange, Threaded
Materials
Polypropylene
Max temperature (°C)
70

Motor

Drive
Magnetic
Related pump models
M100, M140, M200, M250, M290, A19

Dimensions

Width (mm)
713
Depth (mm)
Height (mm)
1290
