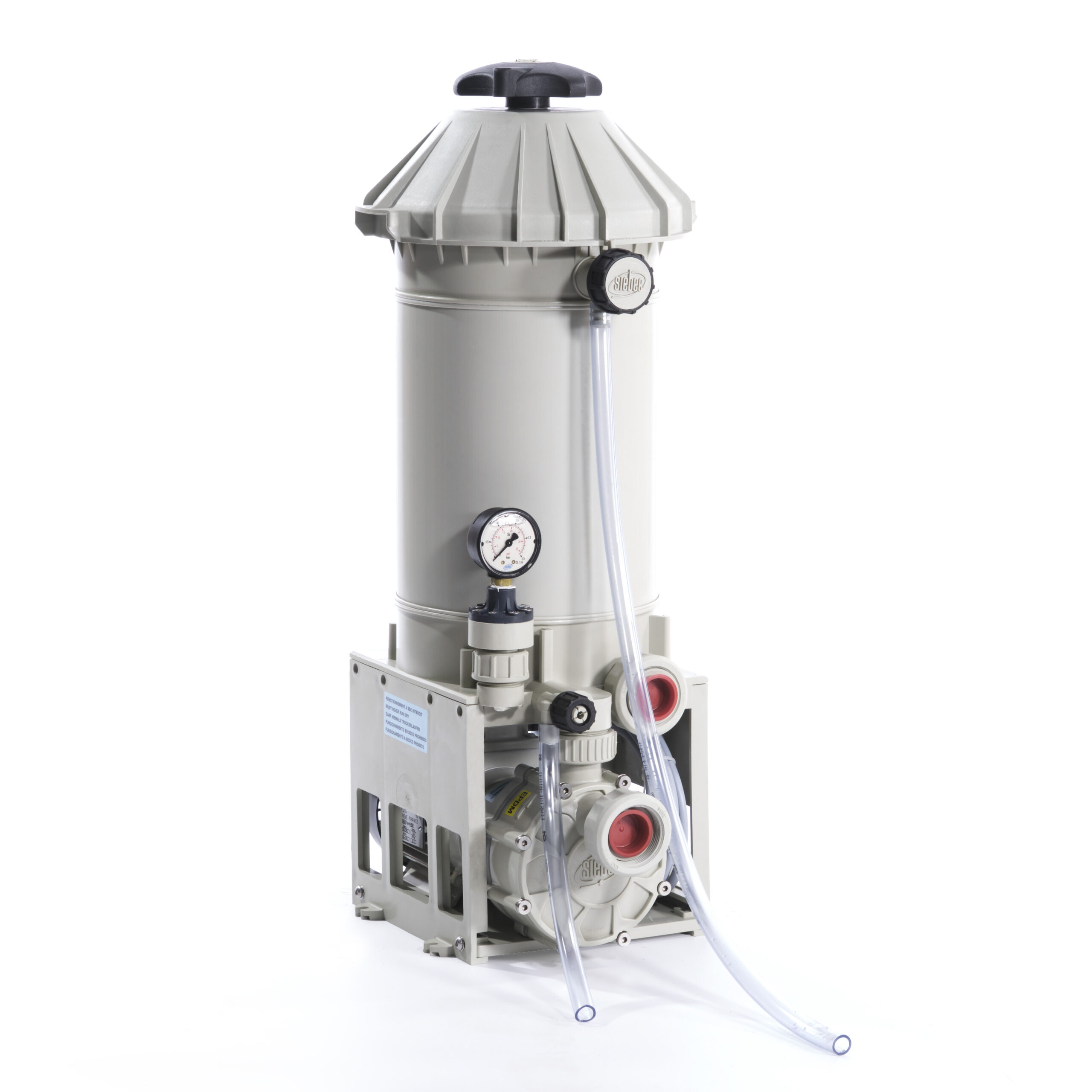

L20 / L30 / L50

Medium flow filter

  • 6 m³/h
  • 250 W

This medium-sized filter offers a flow rate of 1.5 to 6 m³/h on a choice of 10", 20" or 30" filtration media. It is available in 2 materials: polypropylene (PP) or PVDF for high temperatures up to 110°C.

Features & benefits

Excellent chemical resistance

Available in polypropylene or PVDF, this filter is resistant to both acids and bases.

Durable and resistant design

Our extremely strong plastic welding method eliminates the need for gaskets, eliminating the risk of leakage.

Pump Protection

The filter holder protects the pump from splashes of potentially corrosive fluids, thus extending its life.

Improved ergonomics

The bayonet lock lid opens and closes with one hand.

High filtration compatibility

Choose from 5 types of filter media to perfectly fit your needs.

Specifications

Performances

Flow rate (m³/h)
6
Media height
10", 20", 30"
Filtration threshold (µm)
0,2 - 100
Filtration media
L-TECH™ (pleated cartridge), QUALITHERM™ (extruded cartridge), Filter discs, CARBONCANTECH™ (activated carbon), BAGTECH™ (Filter bag)
Double filtration tank
Not available
Coating tank
Not available

Design

End
Nut, Nozzle, Flange, Threaded
Materials
Polypropylene, PVDF
Max temperature (°C)
110

Motor

Drive
Magnetic
Related pump models
M15, M50, M70

Dimensions

Width (mm)
378
Length (mm)
248
Height (mm)
950

Documents

Data sheet Download
Brochure Download
